Description

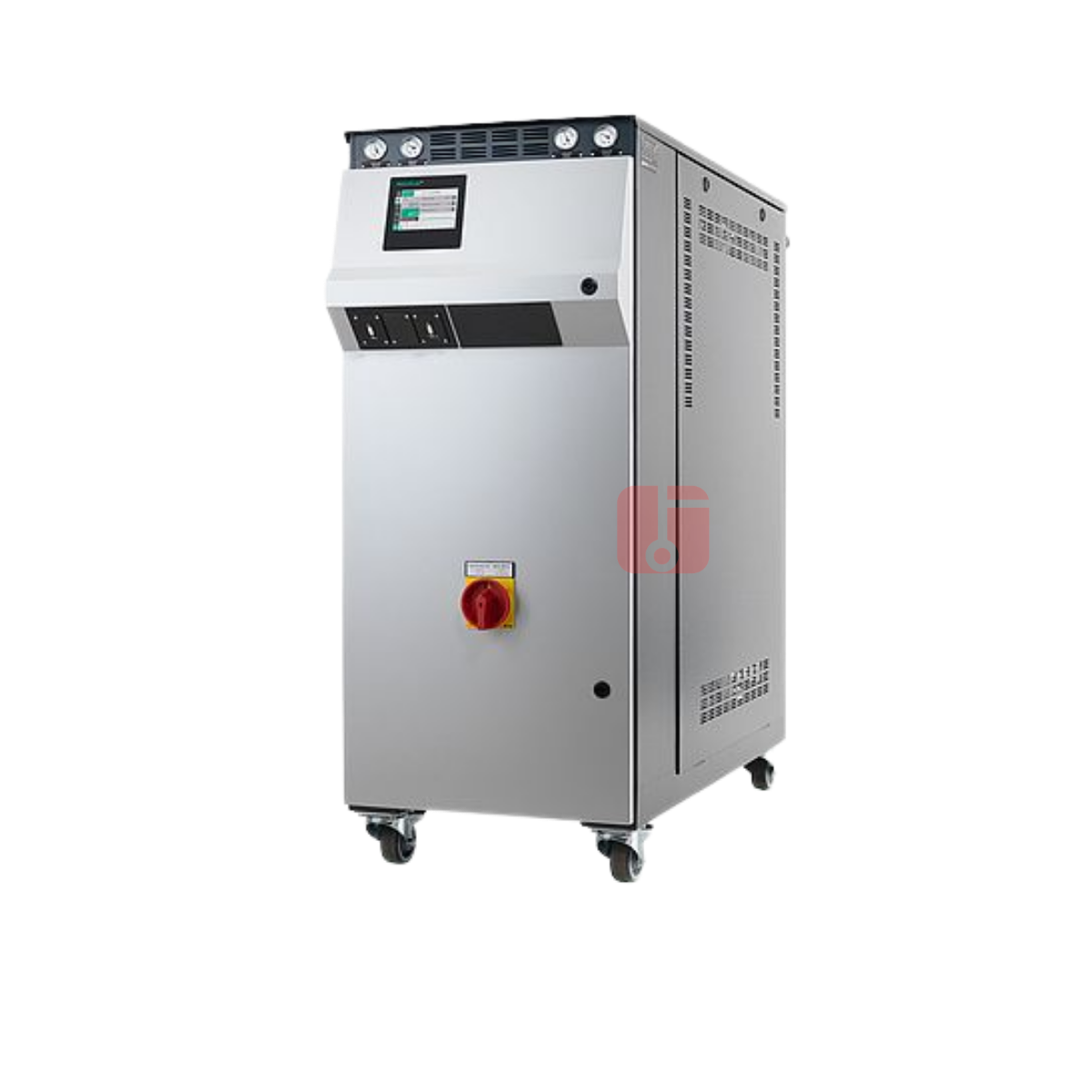

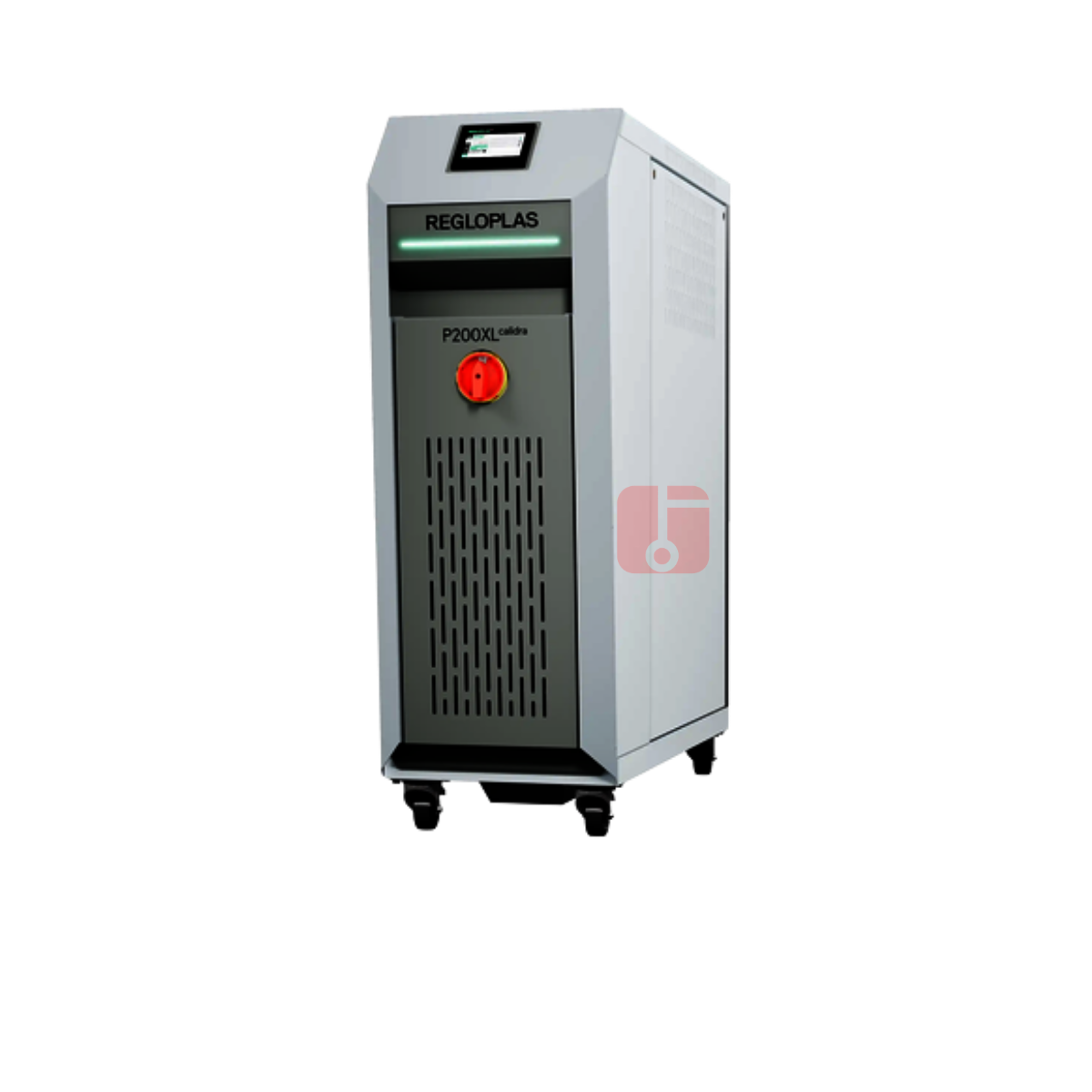

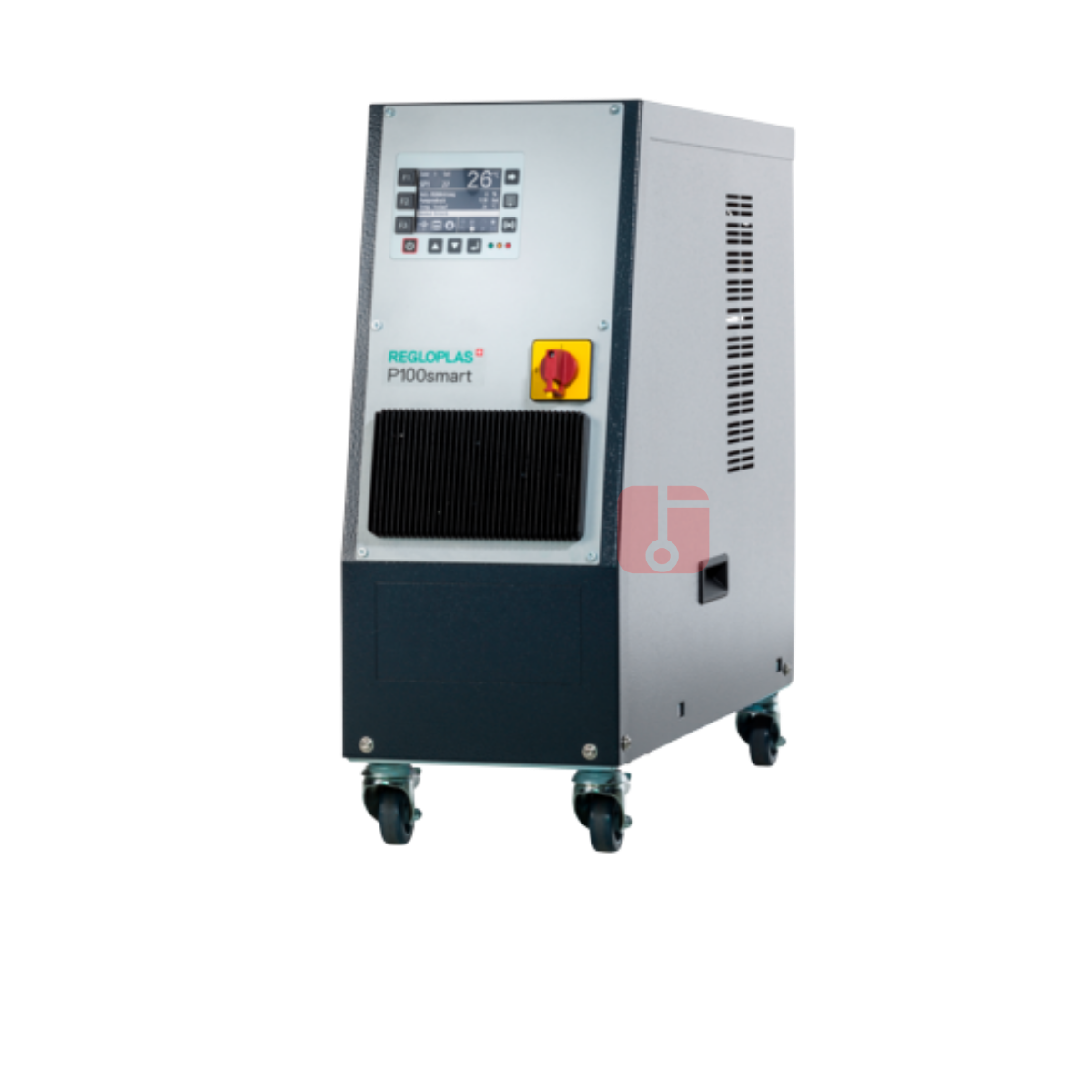

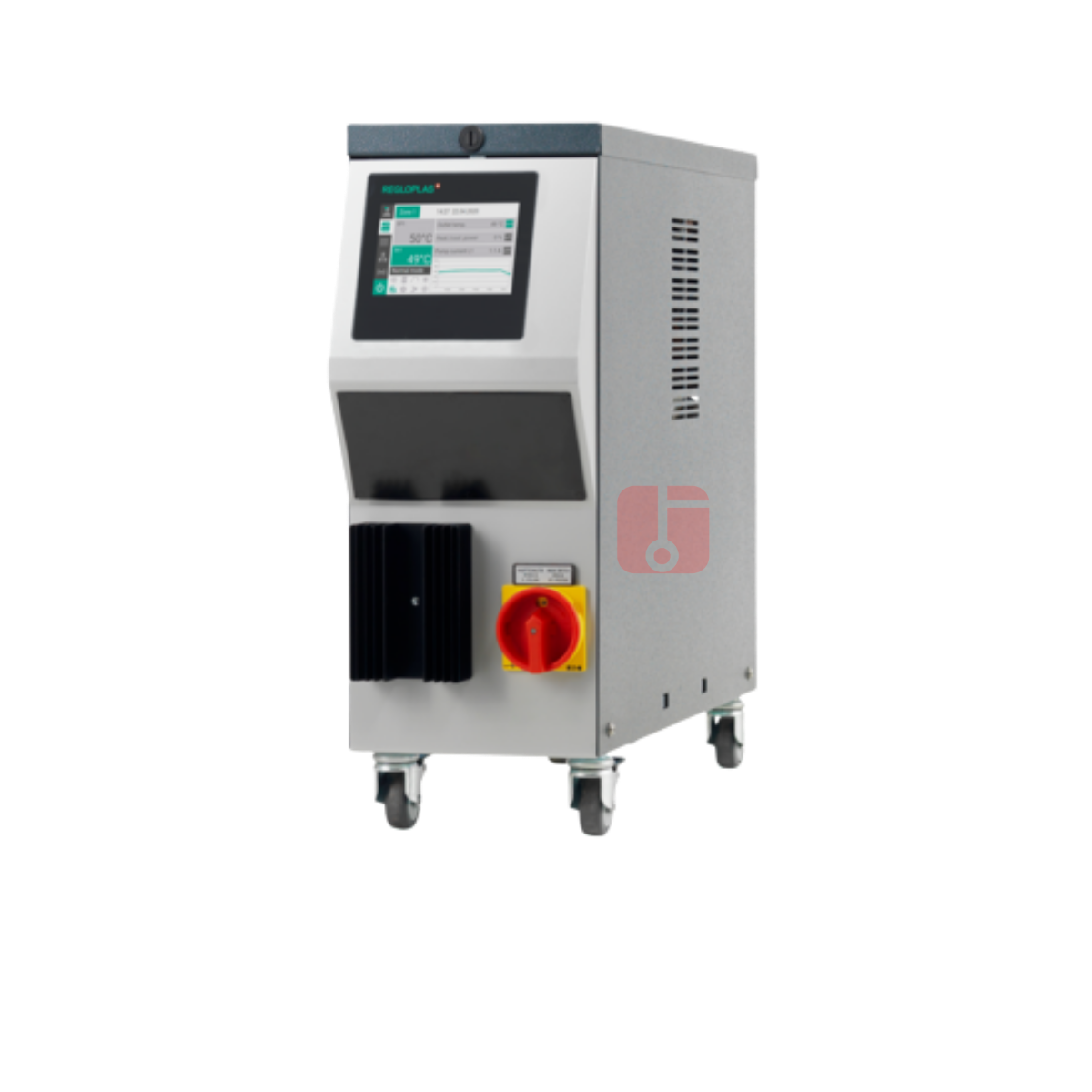

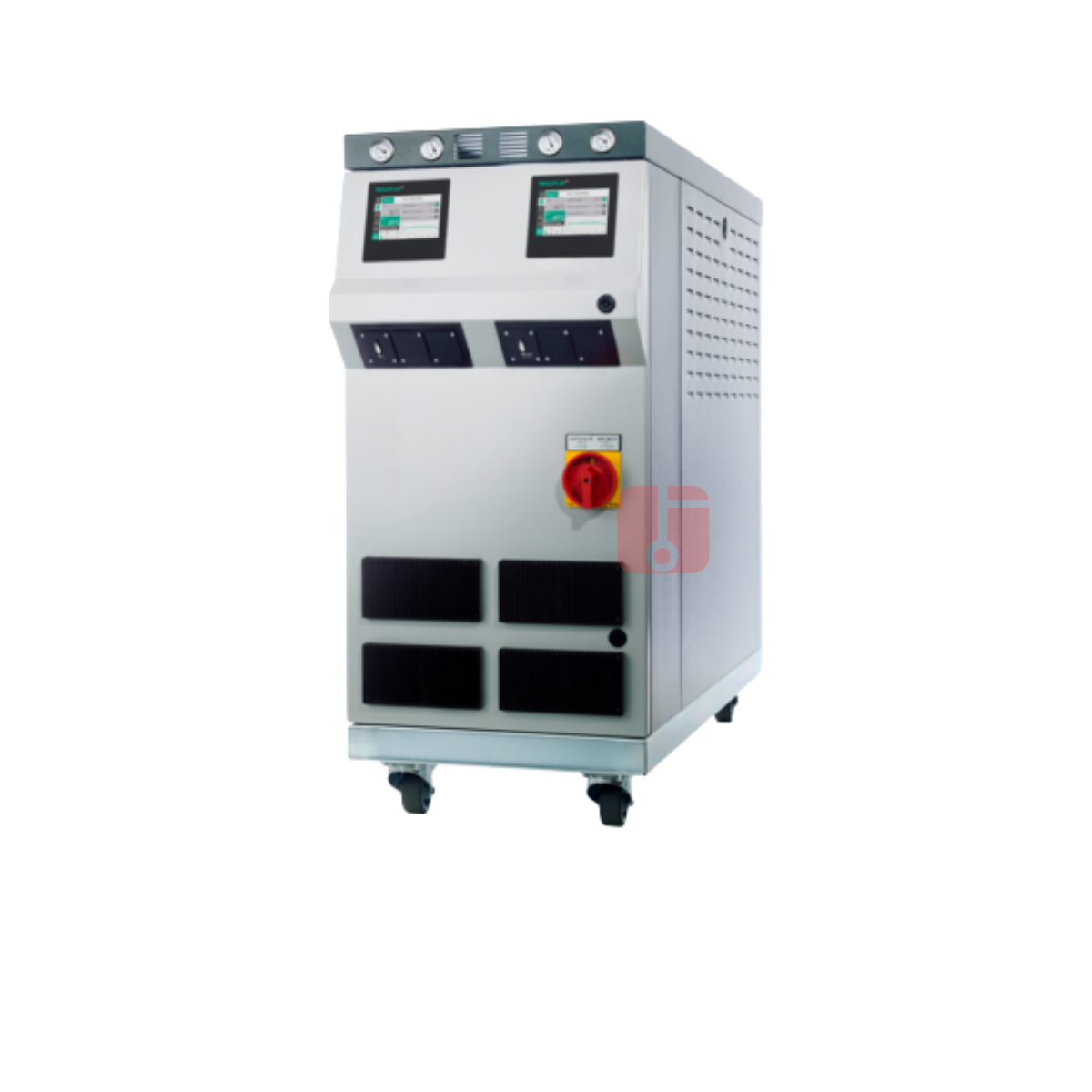

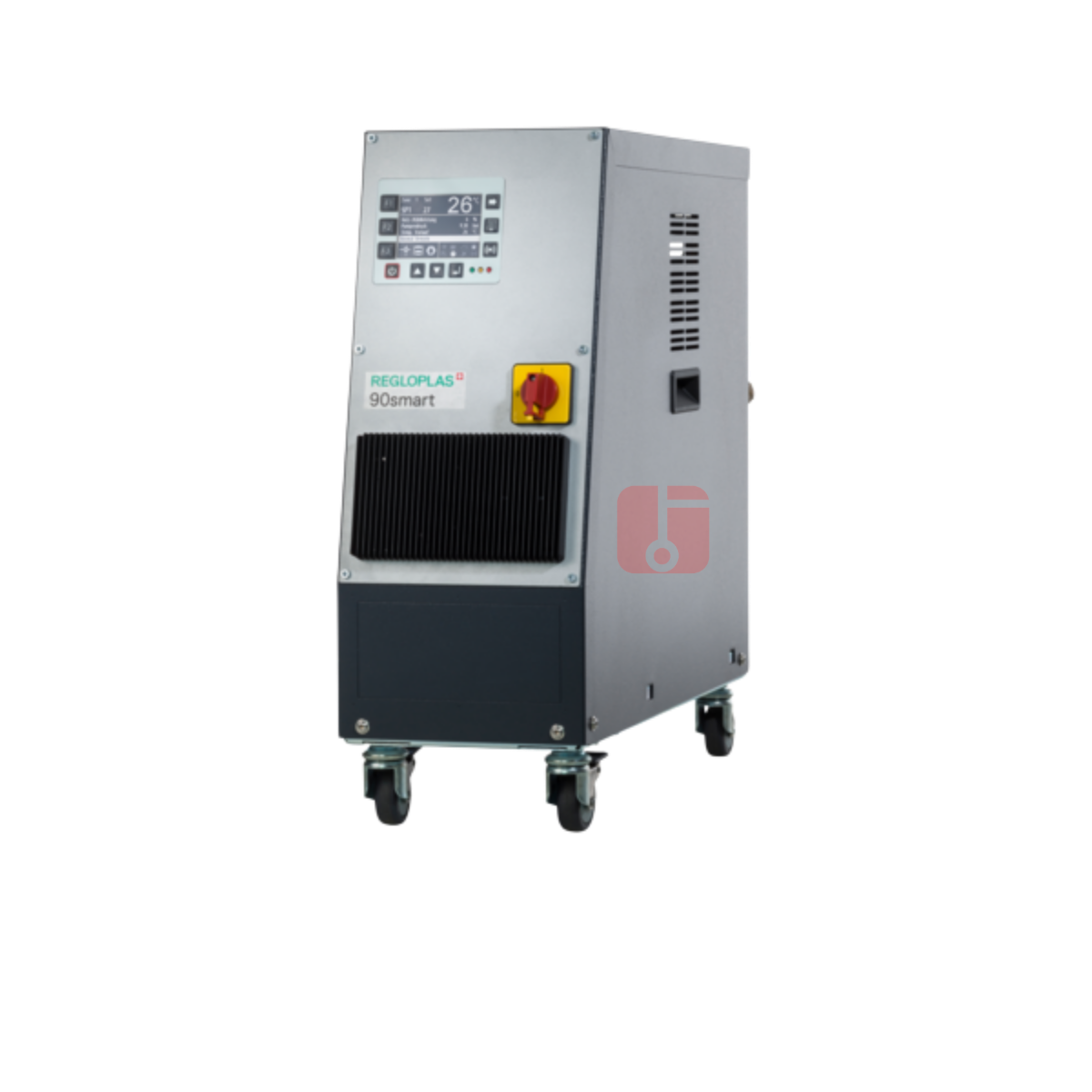

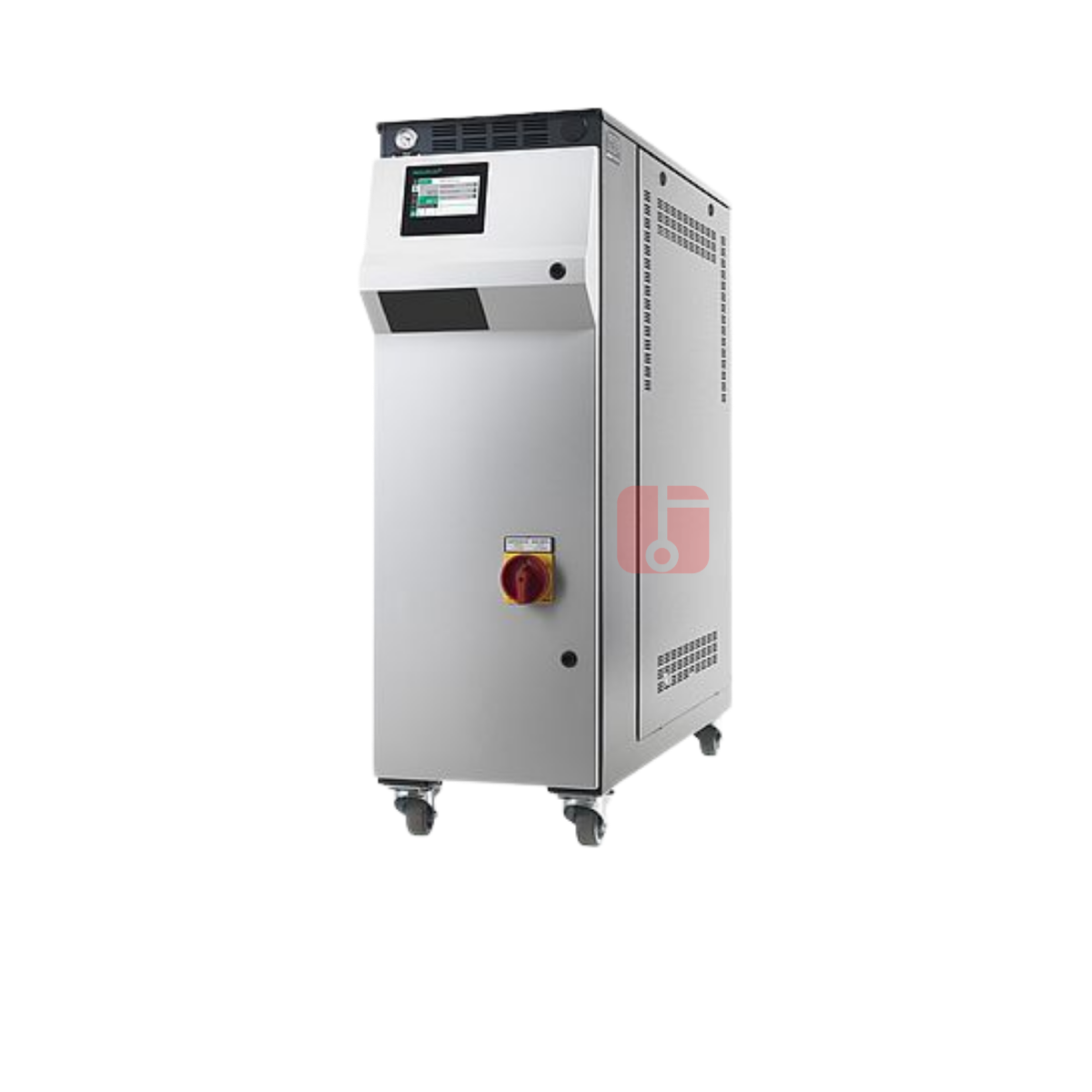

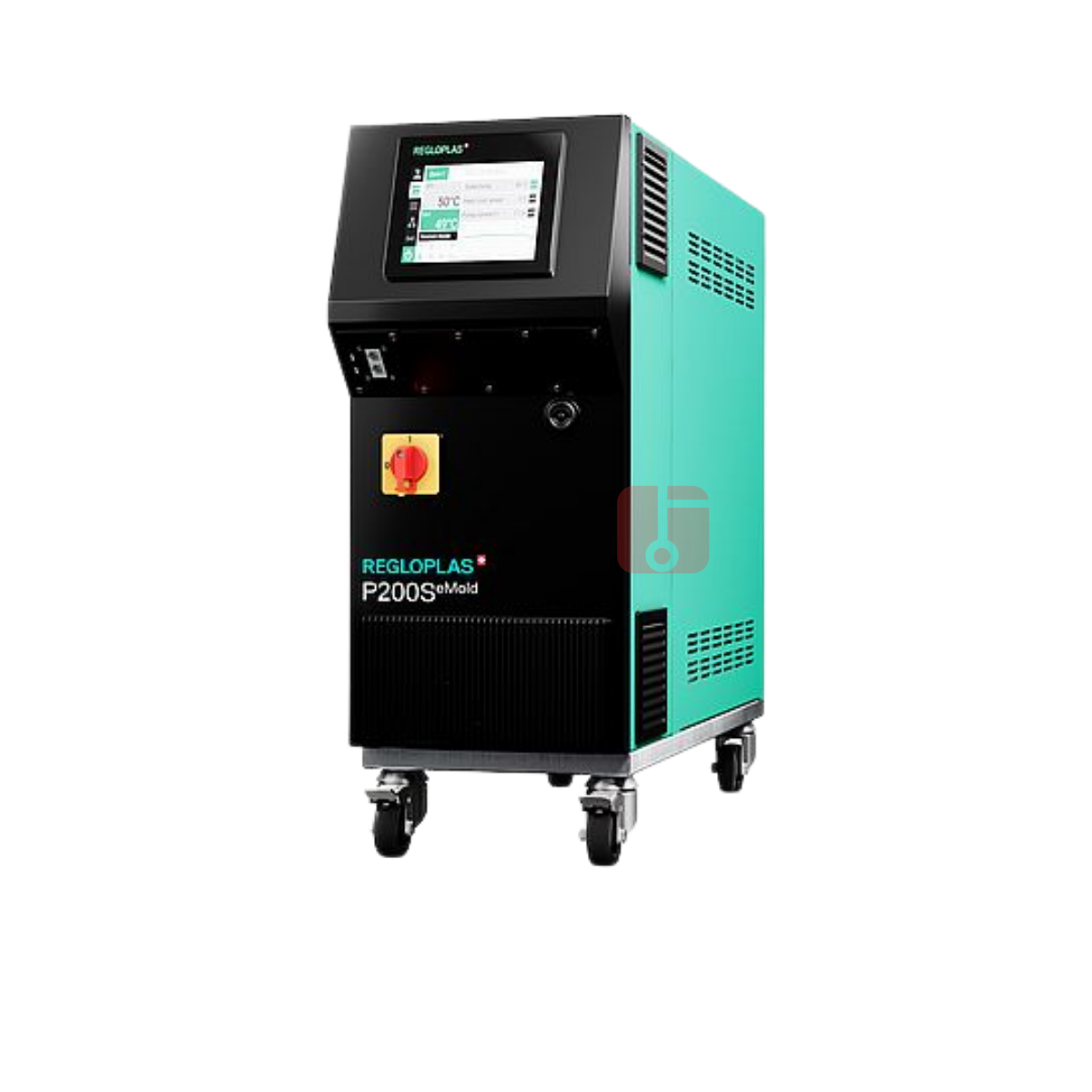

Regloplas Temperature Control Units

Precise temperature control is important for many industrial processes.

A Temperature Control Unit (TCU) heats or cools a connected consumer. This can include a mould, die, roller, or container.

The TCU then maintains the required operating temperature during production. As a result, manufacturers can achieve more stable processes and consistent product quality.

How Does a TCU Work?

A TCU circulates a heat transfer medium through the connected equipment.

Depending on the application, the medium can be water or thermal oil.

The unit heats or cools the medium as required. It then keeps the process temperature within the required range.

This helps maintain stable production conditions.

Water and Oil Temperature Control

Regloplas offers TCUs for different temperature ranges.

The range includes:

• Open water systems up to 90°C
• Open oil systems up to 200°C
• Pressurized water systems up to 230°C
• High-temperature oil systems up to 350°C

Heating capacities range from 3 to 80 kW. Pump capacities range from 11 to 200 l/min.

Therefore, users can select a TCU based on the required temperature, heating capacity, cooling capacity, and flow rate.

Applications Across Industries

Regloplas TCUs support many industrial applications.

These include:

• Injection molding
• Die casting
• Extrusion
• Composite processing
• Food production
• Semiconductor and electronics manufacturing
• Test equipment
• Other advanced manufacturing processes

Regloplas also provides solutions for markets such as automotive, aerospace, plastics, rubber, electronics, pharmaceutical, chemical, medical, food, and packaging.

Temperature Control for Die Casting

Die casting is one of the important applications for Regloplas temperature control.

Stable thermal conditions help manufacturers control the die during production. This is particularly important when the process requires consistent cycle performance and product quality.

However, Regloplas TCU technology extends well beyond die casting. The same temperature control principles apply to many other industrial processes.

Different TCU Technologies

Regloplas offers several types of temperature control units.

These include open bath systems, pressurized water systems, and high-temperature oil systems.

The company also offers different control technologies and options. For example, the RT100 and RT200 controllers can support advanced process control and communication.

Regloplas also offers ∆T control. This technology adjusts pump performance according to the temperature difference between the inlet and outlet. It can reduce pump energy consumption when lower flow or pressure is sufficient.

Choosing the Right Temperature Control Unit

Every application has different thermal requirements.

The right TCU depends on:

• Required operating temperature
• Heat transfer medium
• Heating capacity
• Cooling capacity
• Flow rate
• Pump pressure
• Operating voltage

Therefore, selecting the right unit starts with understanding the process and its thermal requirements.

Regloplas Temperature Control Units

With a broad range of water and oil temperature control units, Regloplas provides solutions for many industrial applications.

From injection molding and die casting to extrusion and other manufacturing processes, stable temperature control can help improve process reliability and product consistency.

PT Wilisindomas Indahmakmur provides Regloplas Temperature Control Units and temperature control solutions for industrial applications in Indonesia.

Contact us to discuss your temperature control requirements.
