Castool Ring Plunger System for Aluminum Die Casting

In aluminum die casting, the plunger tip and shot sleeve work as a system. Their interaction directly affects sealing, shot consistency, cooling, and tooling life.

The Castool Ring Plunger System is designed to maintain consistent contact between the plunger tip and shot sleeve while controlling wear and heat during the casting cycle.

What Is a Ring Plunger System?

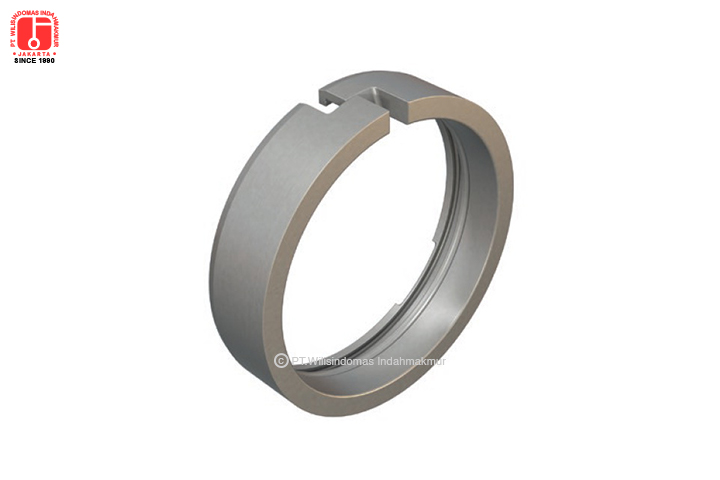

A ring plunger uses an expanding wear ring mounted around the plunger tip.

As the plunger moves through the shot sleeve, the ring maintains continuous contact with the sleeve wall. This helps maintain the seal between the plunger and shot sleeve while reducing direct wear on the main plunger body.

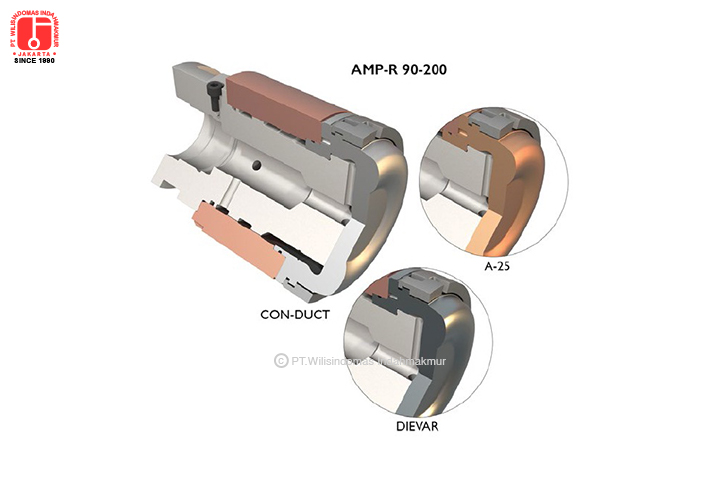

Castool offers ring-based configurations including the Allper Ring Plunger (ARP) and Castool Ring Plunger (CRP). The ARP is designed for medium-sized machines, with applications from approximately 40 mm to 220 mm in diameter.

Why Use an Expanding Wear Ring?

The wear ring plays an important role in maintaining the plunger-to-sleeve seal.

Because the ring can expand against the inside wall of the shot sleeve, it maintains continuous contact during operation. This helps:

• Maintain a secure seal
• Reduce alloy penetration between the plunger and sleeve
• Reduce flash or blow-by
• Support consistent shot velocity
• Improve vacuum sealing
• Reduce plunger and sleeve wear

A better seal is especially important when using vacuum-assisted die casting, where air infiltration can contribute to porosity.

Thermal Management Matters

Plunger tips operate under severe thermal conditions.

After the molten aluminum enters the shot sleeve, the plunger tip must transfer heat efficiently while maintaining dimensional stability. Excessive thermal expansion can affect the clearance between the plunger and sleeve and may lead to binding or accelerated wear.

Castool plunger designs use materials and internal cooling arrangements to improve heat transfer from the plunger tip to the cooling water.

For example, the cooling system can generate turbulent coolant flow inside the plunger tip to improve heat transfer.

Designed for Consistent Shot Performance

The plunger tip must remain dimensionally stable throughout the shot.

When the plunger and shot sleeve maintain the correct relationship, the system can provide:

• More consistent shot velocity
• Better sealing
• Reduced alloy leakage
• More predictable wear
• Improved casting consistency

Therefore, plunger tip performance should always be considered together with shot sleeve condition, clearance, cooling, and lubrication.

Reduce Plunger Tip Replacement Costs

One of the key advantages of a ring-based design is that the wear ring becomes a replaceable consumable component.

Instead of replacing the complete plunger assembly when the wear surface reaches the end of its service life, the replaceable ring can reduce consumable costs and simplify maintenance, depending on the configuration.

Castool also highlights benefits such as:

• Reduced cost per shot
• Increased plunger life
• Increased shot sleeve life
• Improved vacuum sealing
• Reduced scrap
• Reduced downtime

Ring Plunger Solutions for Aluminum Die Casting

Choosing the right plunger system depends on several factors, including machine size, shot sleeve diameter, alloy, shot weight, cycle time, cooling conditions, and casting requirements.

For this reason, a plunger tip should not be selected independently from the shot sleeve and operating conditions.

PT Wilisindomas Indahmakmur provides Castool die casting tooling solutions, including Ring Plunger Systems for aluminum die casting applications.

Contact us to discuss the appropriate Castool plunger tip, wear ring, and shot sleeve solution for your die casting machine.
